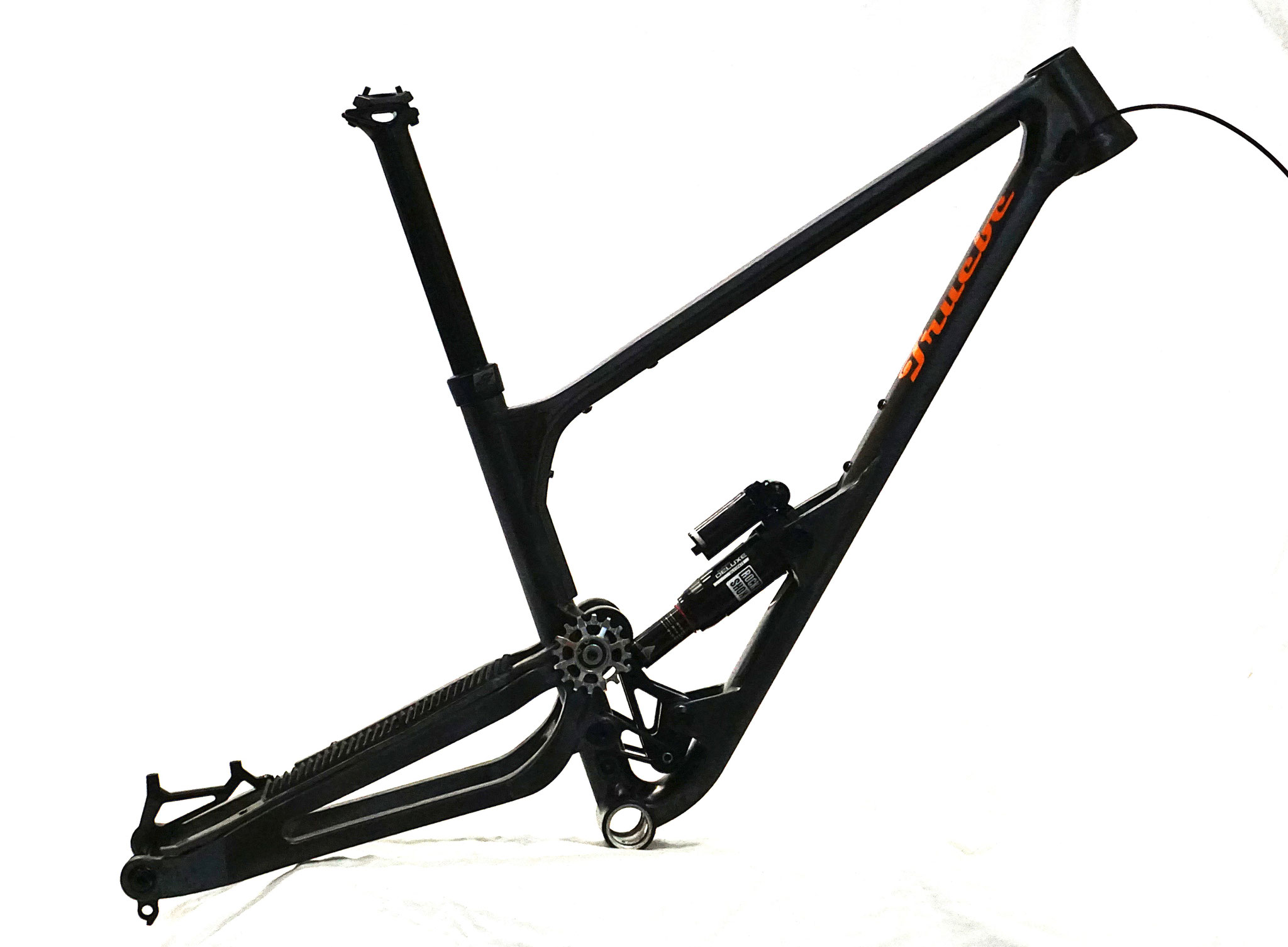

True Knuth Trailbike Frame/Bike

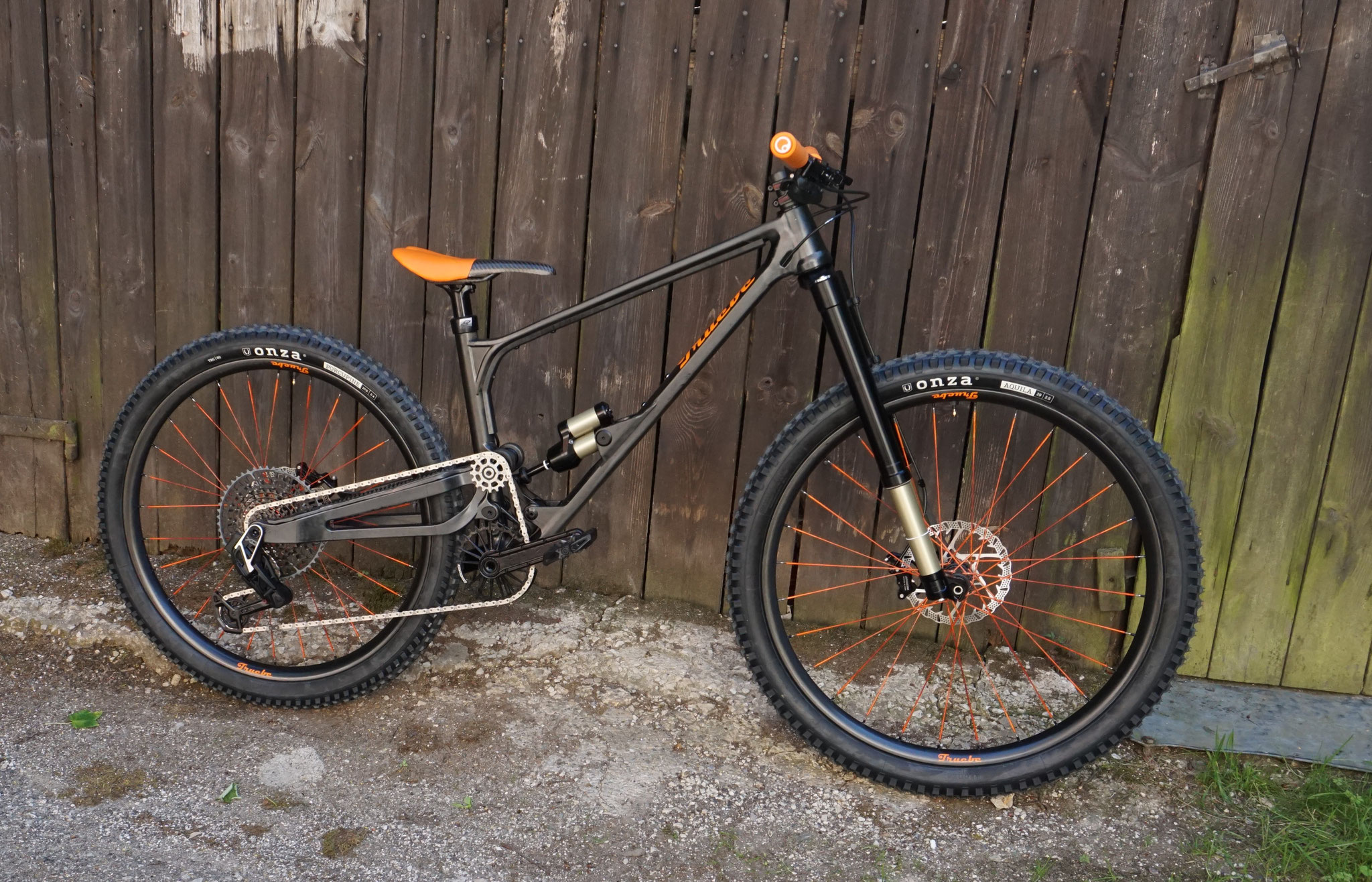

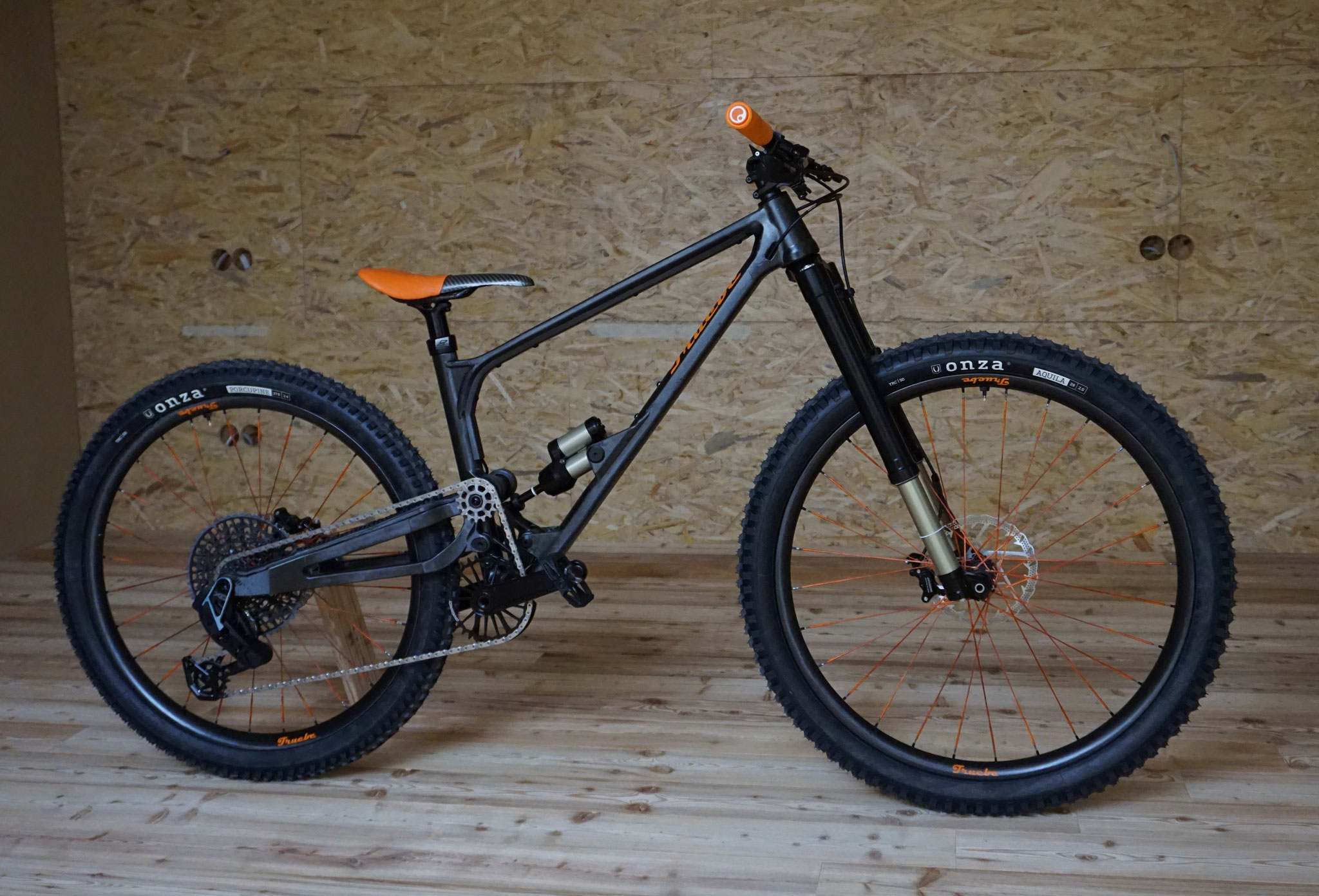

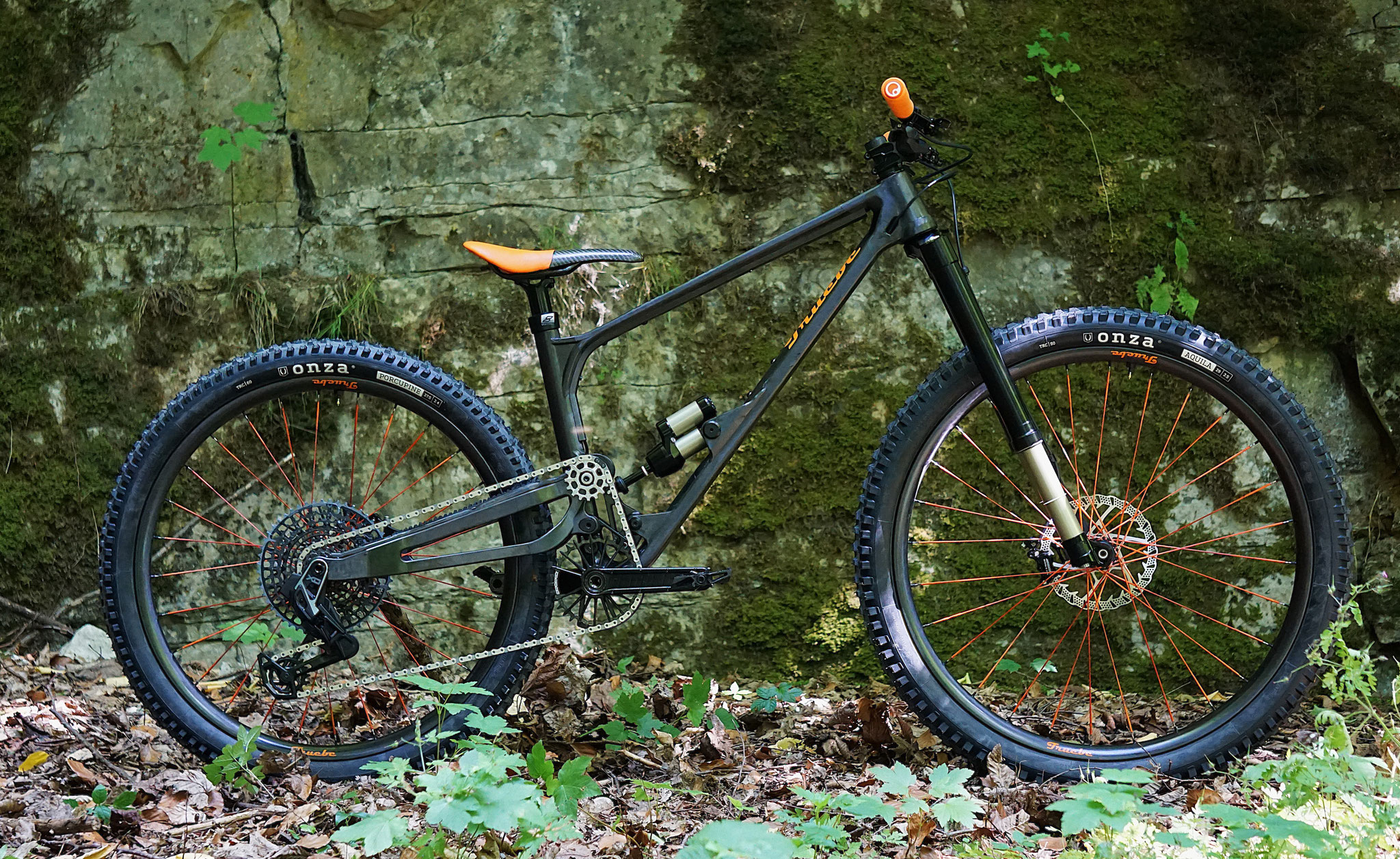

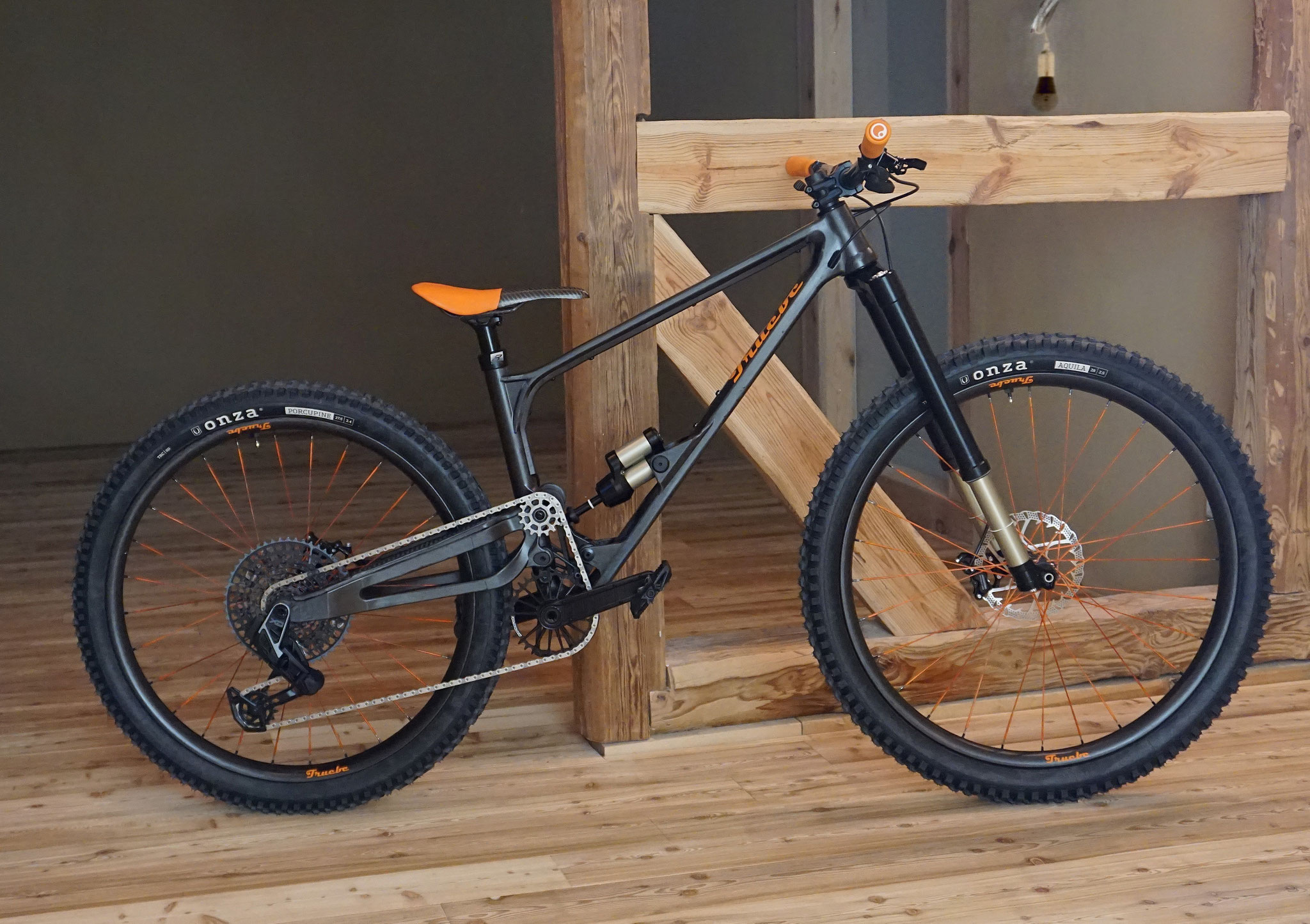

True Knuth Trailbike

Today shredding gnarly Enduro Trails, Tomorrow go on a long XC Group ride!

 A Fun orientated Trailbike for ripping corners, agile but calm enough for gnarly Trails.

 Perfect for nearly all Trails up and Down.

Perfect for nearly all Trails up and Down.





Facts:



·          High Pivot



·          Mullet 29/27,5”



·          150/135mm (Front 140-160 possible)



·          Great climber because High Antisquat pulls the Rear wheel on the Ground and levels the negative Geometrie Changes while climbing



·          Canal System for the Cables, easy Maintaining, mechanical and wireless Shifting parts possible, Rear Brakes left/right without optical issues and perfect cable routing rattle free



·          Big Bearings, Reliable and long lasting



·          Nearly the same wheelbase through the travel (Rear-end grow/Fork minimize the wheelbase)



·          Progressive Linkage provide a very efficient Suspension, perfect for modern Air Shocks and Coil Shocks as well



·          Handmade in Germany!!



·          Integrated Eightpins Seatpost





Geometrie

Geometrienumbers are nice but Please don´t compare only single numbers. At the End is always the important Point that the geometrie are balannced with the Suspension and also behaviors like stiffness etc plays a part in the Riding experiance. Further has the High Pivot Design different behaviors to the most other systems on the Market, like the growing Chainstay lenght.

Also numbers like the (relatively low) BB Height is only possible with the complete Packge of the Progressive Leverage and also the super supple behavior of the High Pivot System.





Reach

Stack

Headtube lenght

Headtube Angle

 Seattubeangle

Chainstay static

Chainstay lenght in Sag Area

BB Drop to Rear Axle

Seattube lenght to End of Eightpins Cap

Eightpins Seatpost version

Travel of the Seatpost

Size Idler pulley

Wheelbase

Forklenght (base for Geometrie)

BB

Shock size

Rear Wheel Standard

Front wheel Size

Rear wheel Size

Brakemount

Reifenclearance











420

612

90

65

78

420,6

 433-437

22

400

S/6x

192

16Z

1156,3

560

BSA 73mm

185x50mm Trunnion

148mm Boost

29"

27,5"

180 oder 200mm PM

2,6"







M

450

621

100

65°

78°

420,6

433-437

22

423

M/6x

216

16Z

1190,6

560

BSA 73mm

185x50mm Trunnion

148mm Boost

29"

27,5"

180 oder 200mm PM

2,6"







480

640

115

65°

78°

420,6

433-437

22

447

L/6x

228

16Z

1226,9

560

BSA 73mm

185x50mm Trunnion

148mm Boost

29"

27,5"

180 oder 200mm PM

2,6"
